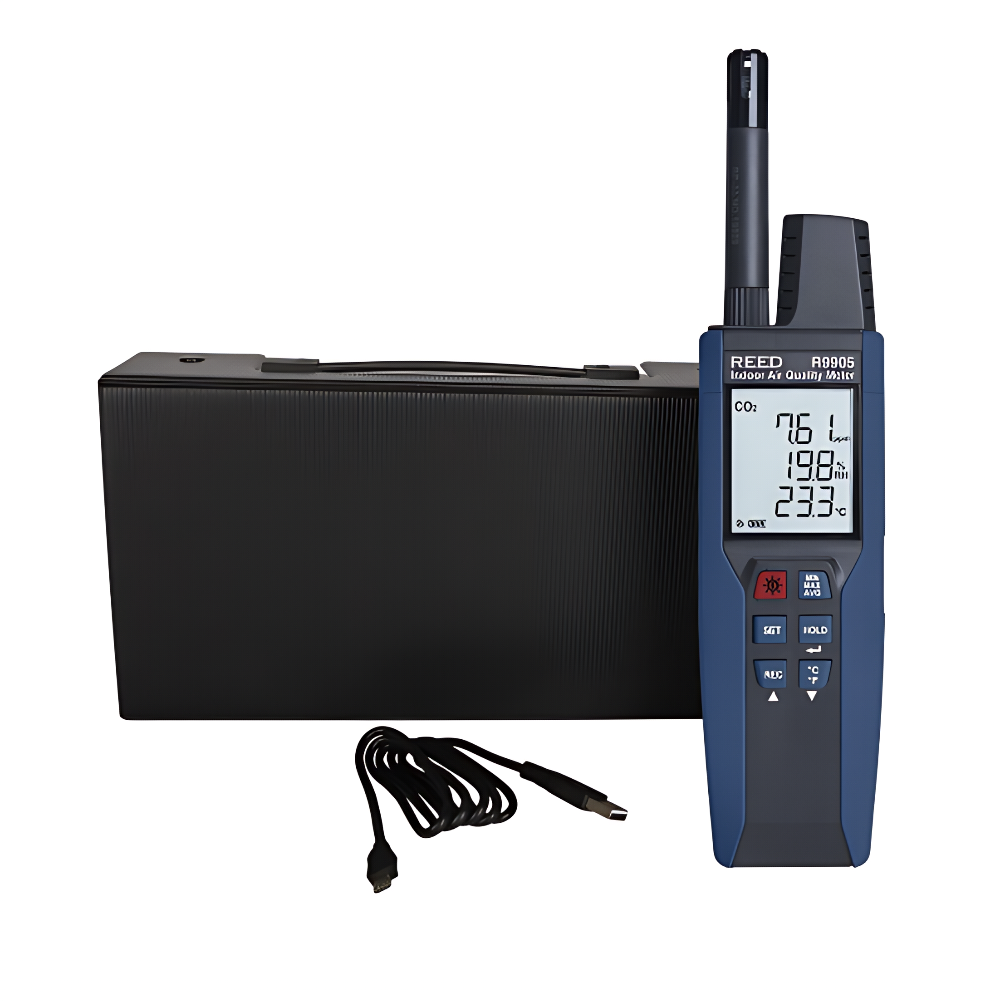

This data logging Indoor Air Quality (IAQ) Meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R9905 features a Nondispersive Infrared (NDIR) CO2 sensor for stable, accurate readings and the option to track live measurements via software.
Temperature |
|
| Measuring Range | -4 to 140°F (-20 to 60°C) |
| Accuracy | ±1.5°F (±0.8°C) |
| Resolution | 0.1°F/°C |
Humidity |
|
| Measuring Range | 0 to 100% RH |
| Accuracy | 10 to 90% RH: ±3% <10% & >90% RH: ±5% |
| Resolution | 0.1% RH |
CO2 (Carbon Dioxide) |
|
| Sensor Type | Nondispersive Infrared (NDIR) |
| Measuring Range | 0 to 30,000ppm |
| Accuracy | 0 to 5000ppm: ±(75ppm +3% rdg.) 5001 to 30,000ppm: ±(150ppm +5% rdg.) |
| Resolution | 1ppm |
| Warm-up Time | 20s |
| Sampling Rate | 2s |
General Specifications |
|
| Display | LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min, Max, Avg Functions | Yes |
| CO2 Short Term Exposure Limit (STEL) | Yes (15 mins) |
| CO2 Time Weighted Average (TWA) | Yes (8 hours) |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (between 1s and 60m59s) |
| Internal Memory | Yes (32,000 datapoints) |
| Alarms | Yes (Low and High) |
| Auto Shut-off | Yes (adjustable) |
| Kick Stand | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 9V battery |
| Battery Life | Approx. 10 hours (continuous use) |
| PC Connectivity | USB |
| Software OS Compatibility | Windows 7 / 8 / 10 / 11 |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 0 to 90% |
| Storage Humidity Range | 10 to 75% |
| Maximum Operating Altitude | 6561' (2000m) |
| Dimensions | 11.2 x 2.6 x 1.5" (284 x 65 x 39mm) |
| Weight | 10.7oz (304g) |

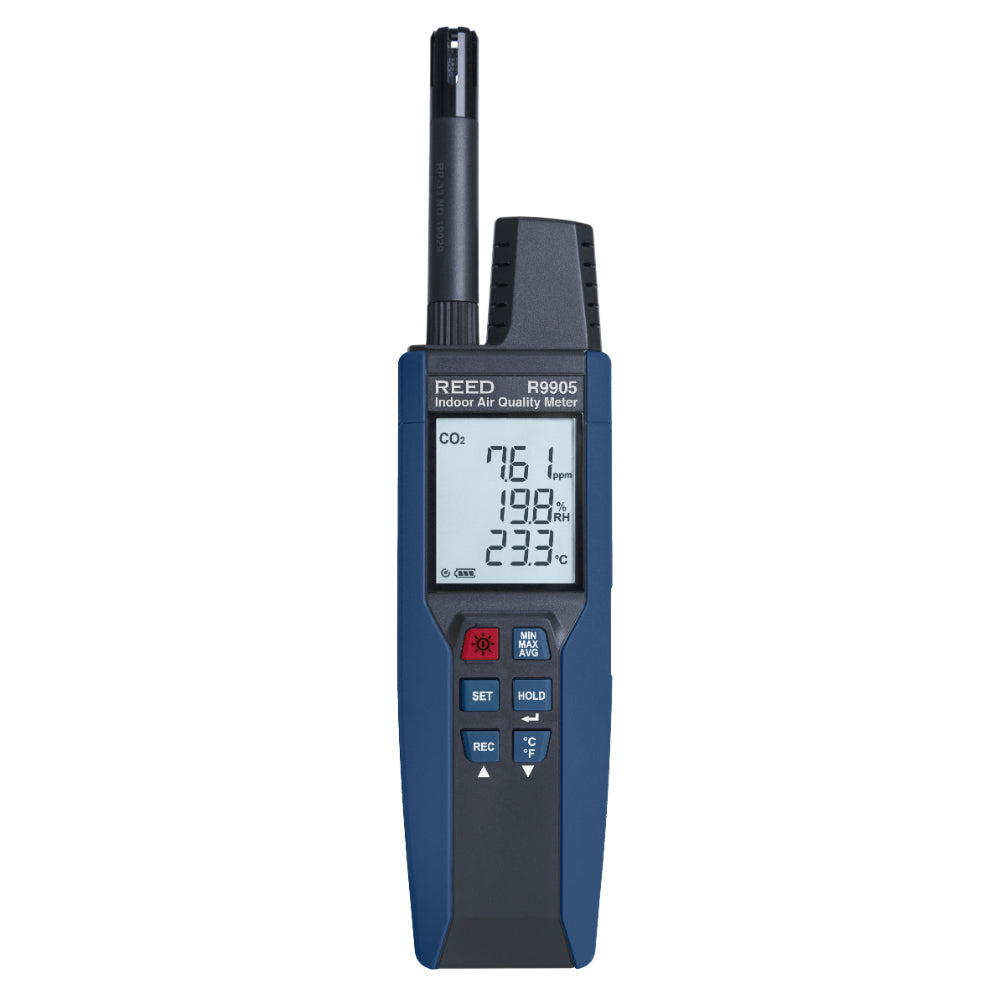

Measure indoor air quality with ease and accuracy using the R9905 data logging indoor air quality meter, featuring a triple LCD that simultaneously monitors carbon dioxide (CO2), temperature, and relative humidity.
The R9905 can calculate the time-weighted average (TWA) and short-term exposure limit (STEL). Get accurate and stable readings with the low-drift NDIR CO2 sensor and get notified when measured levels are high with the user-adjustable audible alarms.
Wondering where all this data will be logged? The R9905 can record up to 32,000 data points and allows you to keep track of them with the internal time and date stamp.
