REED R6250SD-NIST

The R6250SD measures temperature, humidity, and direct or radiant sunlight with Wet Bulb Globe Temperature (WBGT). With this information it determines the "what it feels like" temperature. The R6250SD is designed to meet OSHA requirements, with a user-adjustable WBGT audible alarm and the ability to adjust settings for indoor temperature measurement. Featuring, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or do so automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Measures temperature, humidity, dew point, wet bulb, black globe, indoor/outdoor WBGT
Wet Bulb Globe Temperature (WBGT) considers the effects of temperature, humidity and direct or radiant sunlight
In/Out function displays the WBGT value with or without direct sun exposure
Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface
Adjustable audible alarm
User selectable unit of measure (°F or °C)
Data hold and Max/Min functions
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

Ideal Applications for the REED R6250SD-NIST

Sports (leisure, organized, and professional)
Monitor seasonal conditions to ensure safe environment at school or daycare
Ensuring safe work environments

Specifications

Temperature
Measuring Ranges	Air: 32 to 122.0°F (0 to 50.0°C) Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C) Wet Bulb: -6.9 to 122.0°F (-21.6 to 50°C) Black Globe: 32 to 176°F (0 to 80°C) Indoor WBGT: 32 to 138°F (0 to 59°C) Outdoor WBGT: 32 to 132°F (0 to 56°C)
Accuracy	Air: ±1.5°F (±0.8°C) Black Globe: ±1.1°F (±0.6°C) Indoor WBGT: ±2.7°F (±1.5°C) Outdoor WBGT: ±3.6°F (±2°C)
Resolution	0.1°F/°C
Humidity
Measuring Ranges	5 to 95% RH
Accuracy	>70% RH: ±(3% rdg + 1% RH) <70% RH: ±3% RH
Resolution	0.1% RH
General Specifications
Indoor Formula	0.7WB + 0.3TG
Indoor Range	32 to 138°F (0 to 59°C)
Indoor Accuracy	±2.7°F (±1.5°C)
Outdoor Formula	0.7WB + 0.2TG + 0.1TA
Outdoor Range	32 to 132°F (0 to 56°C)
Outdoor Accuracy	±3.6°F (±2°C)
Response Time	1 second
Display	4-digit dual LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 85%
Dimensions	Instrument: 7.0 x 2.7 x 1.8" (177 x 68 x 45mm) Black Brass Ball Diameter: 2.9" (75mm)
Weight	1.1lb (515g)

Video

The Occupational Safety and Health Administration (OSHA) recommends the use of Wet Bulb Globe Temperature (WBGT) heat stress monitors to ensure safe working conditions are met. The R6250SD considers temperature, humidity, and direct or radiant heat to determine the "what it feels like" temperature.

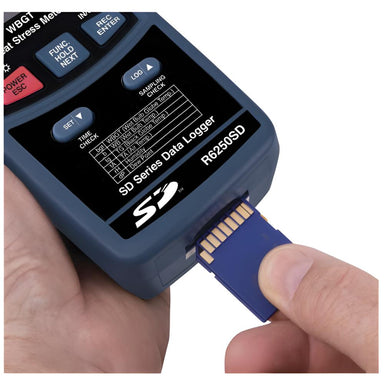

Save yourself a lot of work with the data logging features of this model. As a data logger, its capacity to automatically monitor and record environmental parameters over time, allow conditions to be measured, documented, analyzed, and validated in 3 easy steps.

1. Insert memory card

2. Record the needed data

3. Insert memory card in PC and open with Excel

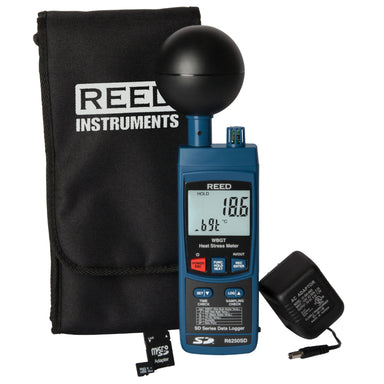

The REED R6250SD Data Logging Heat Stress Meter comes complete with a carrying case and batteries.

Included

Data Logging Heat Stress Meter
Traceable Calibration Certificate with full Data and Uncertainties
Soft Carrying Case
Batteries

Resources

Datasheet for the REED R6250SD Data Logging Heat Stress Meter

Manual for the REED R6250SD Data Logging Heat Stress Meter

Meters

REED Instruments R6250SD-NIST Data Logging Heat Stress Meter, with NIST Certificate
