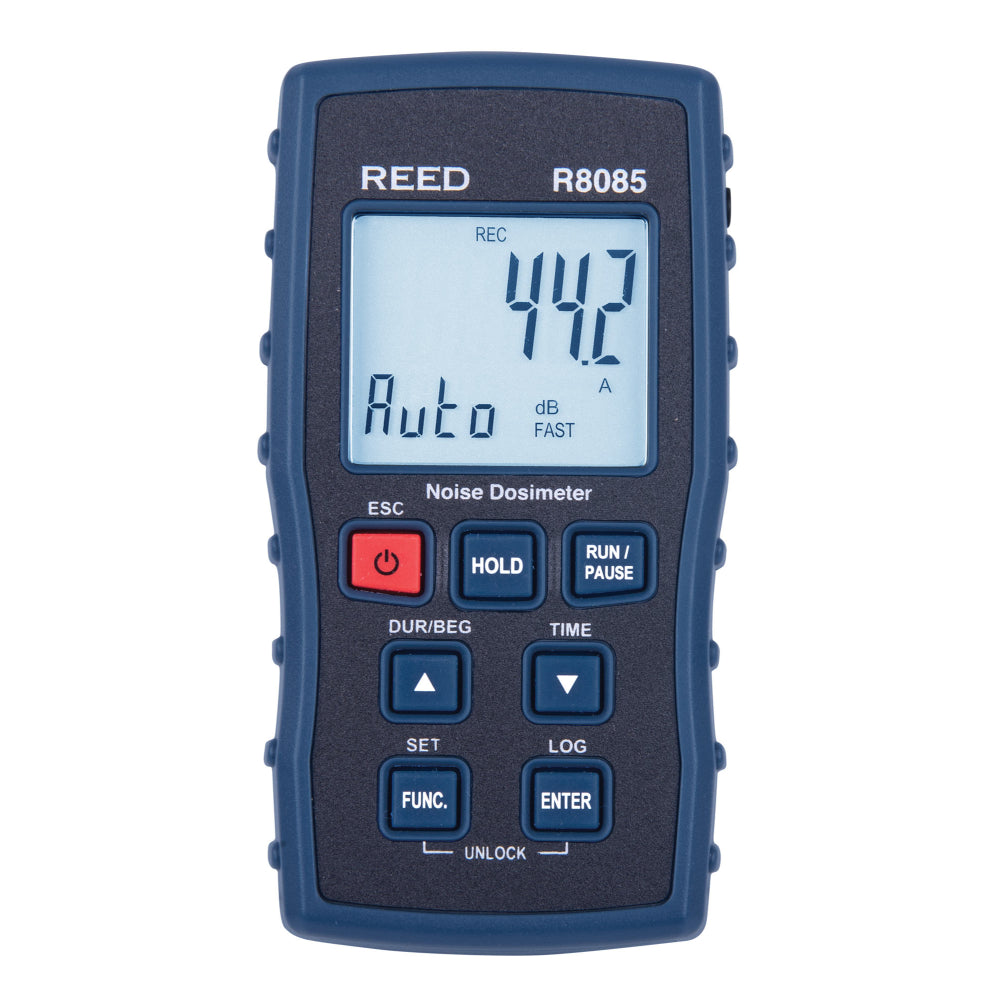

REED Instruments R8085 Dosimeter w/ NIST for OSHA/CCOHS

by Westerly Apollo
$900.00
  • ✓ Free Shipping US Wide
  • ✓ Need Help? Call Us On (888) 913-3691
  • ✓ Get The Best Price. Call Us
  • ✓ 60 Day Returns

Delivery Estimate

Notify me when back in stock

REED R8085-NIST

This noise dosimeter has the ability to record sound levels (dB) and sound exposure (dose %) in order to determine an individual's sound exposure over an 8-hour period. The R8085 is a lightweight and compact Dosimeter designed to meet noise survey requirements established by OSHA (Occupational Safety and Health Administration) and the CCOHS (Canadian Centre for Occupational Health and Safety).

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Noise dosimeter, sound level meter and data logger
  • High accuracy of ±1.0dB meets Type 2 standards
  • Designed to meet noise survey requirements for compliance with OSHA and CCOHS regulations
  • Personal sound exposure meets IEC 61252, ANSI S1.25
  • A and C frequency weighting
  • Fast and Slow time weighting
  • Lightweight and compact design
  • Adjustable Criterion Level, Exchange Rate and Threshold
  • USB interface with Windows® Compatible software to retrieve stored data (sold separately)
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max hold
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

Ideal Applications for the REED R8085-NIST

  • Personal accumulated noise exposure
  • Construction sites
  • Ensuring safe working conditions
  • Code enforcement
  • Traffic
  • Recording of acoustic levels for environmental impact studies
Specifications
Measurement Type Sound Pressure Level: dB
Personal Noise Exposure: %Dose
Measuring Range(s) 35 to 130dB
Low: 35 to 80dB
High: 80 to 130dB
Auto: 35 to 130dB
Dose: 70 to 130dB
Dynamic Range 50dB (in each range)
Accuracy 31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB,
500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB,
8kHz ±5.0dB
Resolution 0.1dB
Response Time Approx. 1 sec
Frequency Range 31.5Hz to 8kHz
Frequency Weighting A, C
Time Weighting Fast/Slow (125mS and 1s)
Microphone 0.5" (12.7mm) electret condenser
Display 4-digit LCD
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Alarm Indicators Over (visual on-screen)
Data logging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
Selectable Dose Measurement Rate Yes (0, 1, 5, 10, 15, 30mins/1, 2, 4, 8, 10, 12, 24hrs)
Auto Shut-off Yes (after 10 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 3 x AAA batteries
Output Yes, RS-232/USB (optional)
PC Connectivity USB Cable (R8085-USB, optional)
Software PC Software (R8085-PC, optional)
Software OS Compatibility Windows XP/Vista/7/8/10
Product Certifications CE, IEC61252, ANSI S1.25 for Noise Dose and Sound Exposure Meters, IEC 61672 Class 2/ANSI S1.4 Type S for Sound Level Meters
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range <85%
Dimensions 4.2 x 2.3 x 1.0" (107 x 58 x 25mm)
Weight 4.3oz (122g)



Videos

Measure noise exposure with the REED R8085 Noise Dosimeter

Noise dosimeters are specialized sound level meters specifically designed to measure personal noise exposure over time. The REED R8085 Noise Dosimeter allows you to measure, capture and calculate sound exposure levels.

The R8085 has a high accuracy of ±1.0dB and is designed to meet noise survey requirements for compliance with OSHA and CCOHS regulations. Criterion level, exchange rate and threshold can also be set and adjusted. Retrieve stored data via USB interface with Windows® compatible software (sold separately).

How To: Calibrate your Sound Level Meter

Calibration is vital in ensuring that your sound level meter is in proper working condition when measuring noise. For the purpose of this video, we'll be using the R8080 Sound Level Meter and the R8090 Sound Level Calibrator. These steps will work for most sound level meters.

Included
  • Dosimeter
  • Traceable Calibration Certificate with full Data and Uncertainties
  • Microphone with Clip
  • Wrist Strap
  • Carrying Case
  • Batteries
Resources

Datasheet for the REED R8085-NIST Noise Dosimeter w/ NIST Traceable Certificate

Manual for the REED R8085-NIST Noise Dosimeter w/ NIST Traceable Certificate
