Reed Instruments BX-500 IR Temperature Calibrator with NIST

High-Precision Portable Calibration for Non-Contact Thermometers

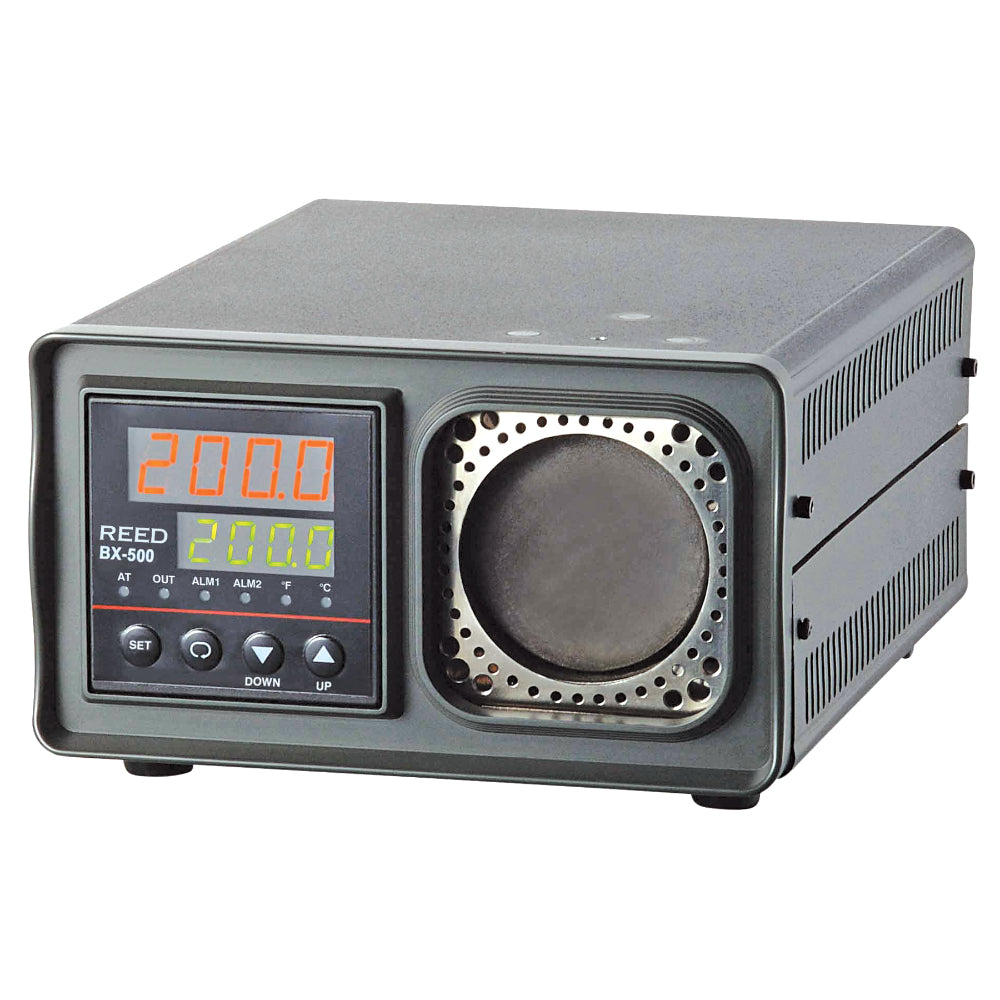

The Reed Instruments BX-500-NIST is a portable, benchtop dry-well calibrator engineered to verify the accuracy of infrared thermometers in the field or the lab. With a broad range reaching 932°F (500°C), it provides a stable and uniform thermal target for testing a wide variety of IR sensors. This model includes a Traceable Calibration Certificate to ensure your quality control processes remain compliant with international standards.

Key Technical Advantages

• Wide Temperature Range: Quickly adjust and stabilize temperatures from 122 to 932°F (50 to 500°C) for comprehensive tool testing.

• Large Target Surface: The 2.25" (57mm) blackbody target is designed to accommodate different field-of-view requirements, ensuring accurate readings even from a distance.

• Rapid Heat-Up & Stability: Reach your desired set point quickly with a highly stable internal controller that maintains temperature consistency for repeatable results.

• User-Friendly Interface: Features a clear LED display showing both the target and actual temperatures, making it easy to confirm your IR thermometer's performance at a glance.

Ideal Applications for the REED BX-500

• Calibration Labs: Use as a primary or secondary standard for verifying non-contact temperature sensors.

• Food Processing & Safety: Calibrate IR thermometers used to monitor critical storage and cooking temperatures to ensure HACCP compliance.

• Industrial Maintenance: Regularly verify the tools used to monitor electrical panels, motors, and bearings to prevent false alarms or missed failures.

• HVAC/R Systems: Test thermometers used for measuring vent outputs, boiler surfaces, and cooling coils.

• Quality Assurance: Maintain a regular calibration schedule for all facility-wide infrared temperature tools to meet strict internal safety standards.

Specifications

Video

Ensure Measurement Integrity with the Reed BX-500 IR Calibrator

Don't let inaccurate temperature readings compromise your work. The Reed Instruments BX-500 is the professional solution for verifying non-contact infrared thermometers. Capable of reaching 932°F (500°C), this portable dry-well calibrator provides a reliable, uniform heat source to check your equipment's calibration in real-time.

Precision Documentation and Design:

• Certified Confidence: This unit comes with an NIST Traceable Calibration Certificate, providing the documentation required for ISO audits and safety inspections.

• Field-Ready Portability: Its compact, rugged design makes it easy to move between the calibration lab and the production floor.

• Accuracy You Can See: With a stability of ±0.1°C at lower ranges and a large blackbody target, you can trust that your IR thermometer is performing to its manufacturer's specifications.

• Complete Calibration Solution: Includes the calibrator unit, power cord, and a traceable certificate, ensuring you are ready for precision work immediately.

Included

• Infrared Calibrator
• Power Cord

Resources

Datasheet for the REED BX-500 NIST Infrared (IR) Temperature Calibrator, 932°F

Manual for the REED BX-500 NIST Infrared (IR) Temperature Calibrator, 932°F
