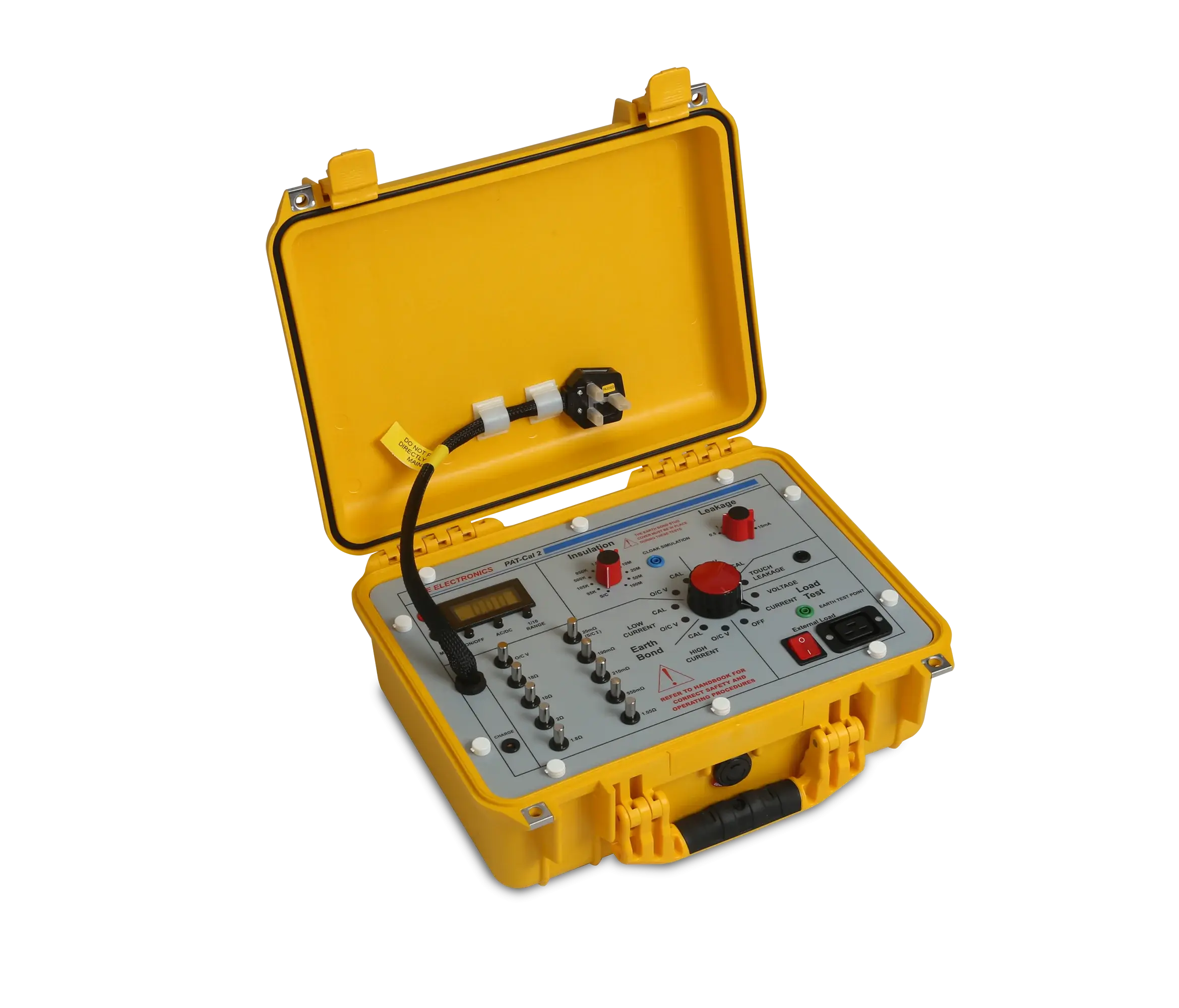

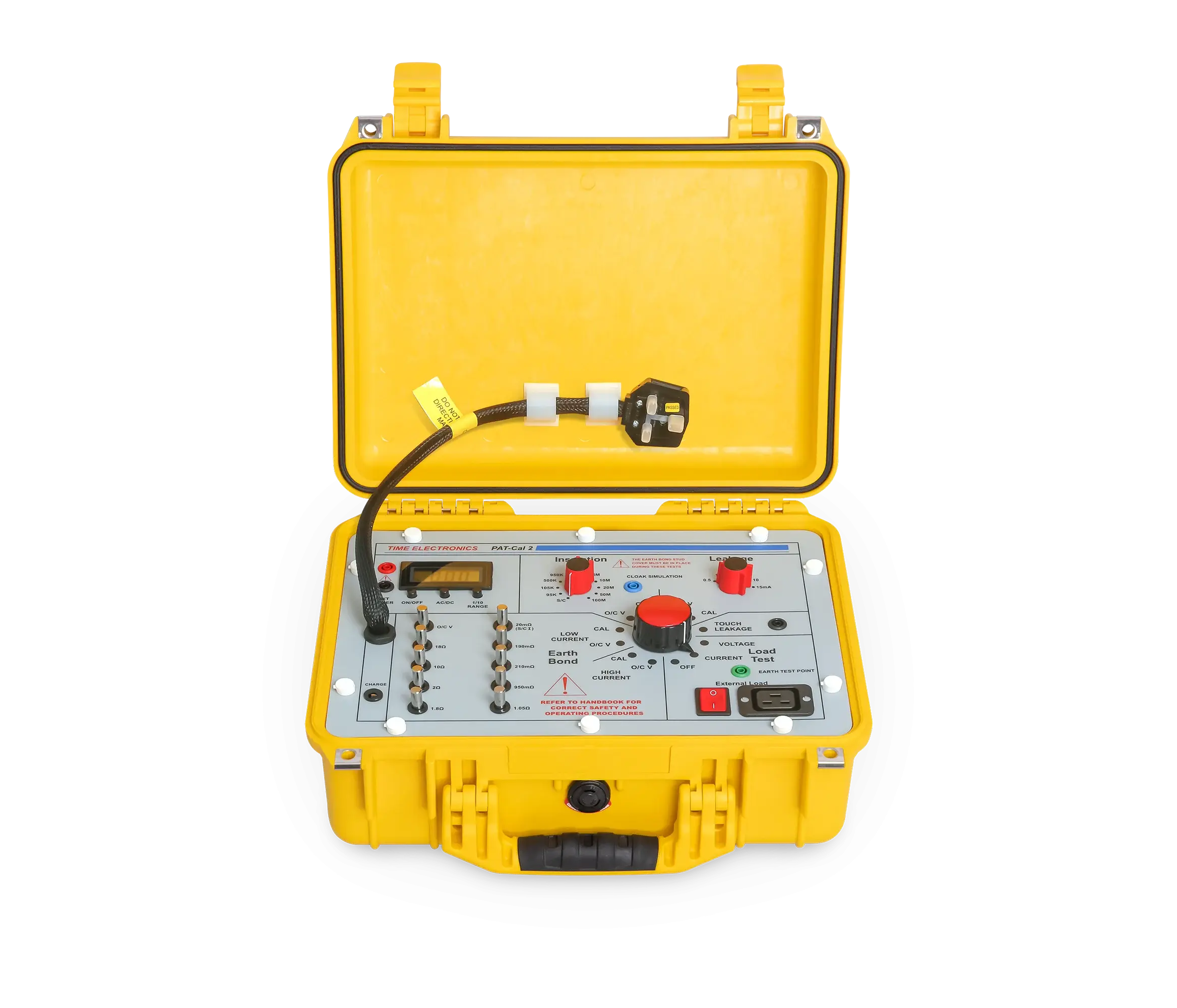

A precision calibrator designed to provide rapid high accuracy calibration of portable appliance testers and insulation/continuity testers. The 5080 PAT calibrator has functions for earth bond, insulation, leakage, touch leakage, and load test.
Housed in a robust safety case the 5080 is easily portable and ideal for field calibration work. It is battery powered, which ensures isolation and prevents inaccuracies due to stray leakage. Features include safety interlock that prevents contact with earth bond studs during insulation and leakage tests, and an LCD display for voltage and current.
The 5080 is a dedicated solution for PAT testers and part of the electrical testing calibration range from Time Electronics. Other models include the 5030 electrical tester calibrator for RCD, loop, insulation, earth testers and multifunction installation testers. For calibration of insulation testers the 5069 InsCal is a portable instrument with resistance up to 100 GΩ and 10 kV operation.
Features
- Calibrate PAT Testers
- Calibrate VDE0701 testers
- Battery powered
- LCD display of voltage and current
- Safety interlock feature
- Earth bond currents up to 50 A AC
- Load test currents up to 13 A AC
- Durable housing in portable safety case
Specifications
Technical Specification
| Earth Bond: Calibrated low value resistive loads |
|
Values / Accuracy
|
20 mΩ, accuracy 5 %
190 mΩ, 210 mΩ, 950 mΩ, 1.050 mΩ, 1.08 Ω, 2 Ω, 10 Ω, 18 Ω, accuracy 1 %
|
|
Open circuit voltage measurement
|
Range: 0 to 20 V
Accuracy: 0.25 % of full scale
|
|
High current AC measurement
|
Range: 0 to 50 A AC
Accuracy: 0.5 % of reading +/- 0.2 A
|
|
Low current AC measurement
|
Range: 0 to 2 A AC
Accuracy: 0.5 % of reading +/- 2 mA
|
|
Low current DC measurement
|
Range: 0 to 2 A DC
Accuracy: 1 % of reading +/- 2 mA
|
| Insulation: Calibrated high value resistive loads |
|
Values / Accuracy
|
95 kΩ, 105 kΩ, 500 kΩ, 950 kΩ, 1.05 MΩ, 5 MΩ, 10 MΩ, accuracy 0.1 %
20 MΩ, 50 MΩ, 100 MΩ, accuracy 1.0 %
|
|
Open circuit voltage measurement
|
Range: 0 to 1 kV DC
Accuracy: 0.25 % of full scale
|
| Current measurement |
Range: 0 to 20 mA DC. Accuracy: 0.25 % of full scale |
|
| Leakage: Resistive loads for leakage current |
| Nominal Leakage Currents |
At 230 V AC of 0.5, 1, 2, 5, 10, 15 mA |
|
Mains voltage measurement
|
Range: 0 to 500 V AC
Accuracy 0.25 % of full scale
|
|
Leakage current measurement
|
Range: 0 to 20 mA AC
Accuracy 0.25 % of full scale
|
| Load Test: Connection of external load via an IEC connector |
|
Mains voltage measurement
|
Range: 0 to 500 V AC
Accuracy: 0.25 % of full scale
|
|
Load current measurement
|
Range: 0 to 13 A AC
Accuracy: 0.5 % of full scale
|
General Specification
| Power |
Internal battery 6 V re-chargeable NiCad, > 200 hrs between charges |
| Dimensions |
W 406 x H 175 x D 330 mm |
| Weight |
5.5 kg |
| Supplied With |
4 mm terminal box adaptor, 110 V adaptor, IEC connector (for external load), battery charger, and user manual |
| Optional Extras |
Calibration certificates: Traceable (factory) and accredited (ISO 17025) |
| Country of Origin |
UK |
| Shipping Details |
Packed Dimensions: L 77 x W 52 x H 30 cm / Packed Weight: 10 kg |
| HS Code |
9030 3370 |
