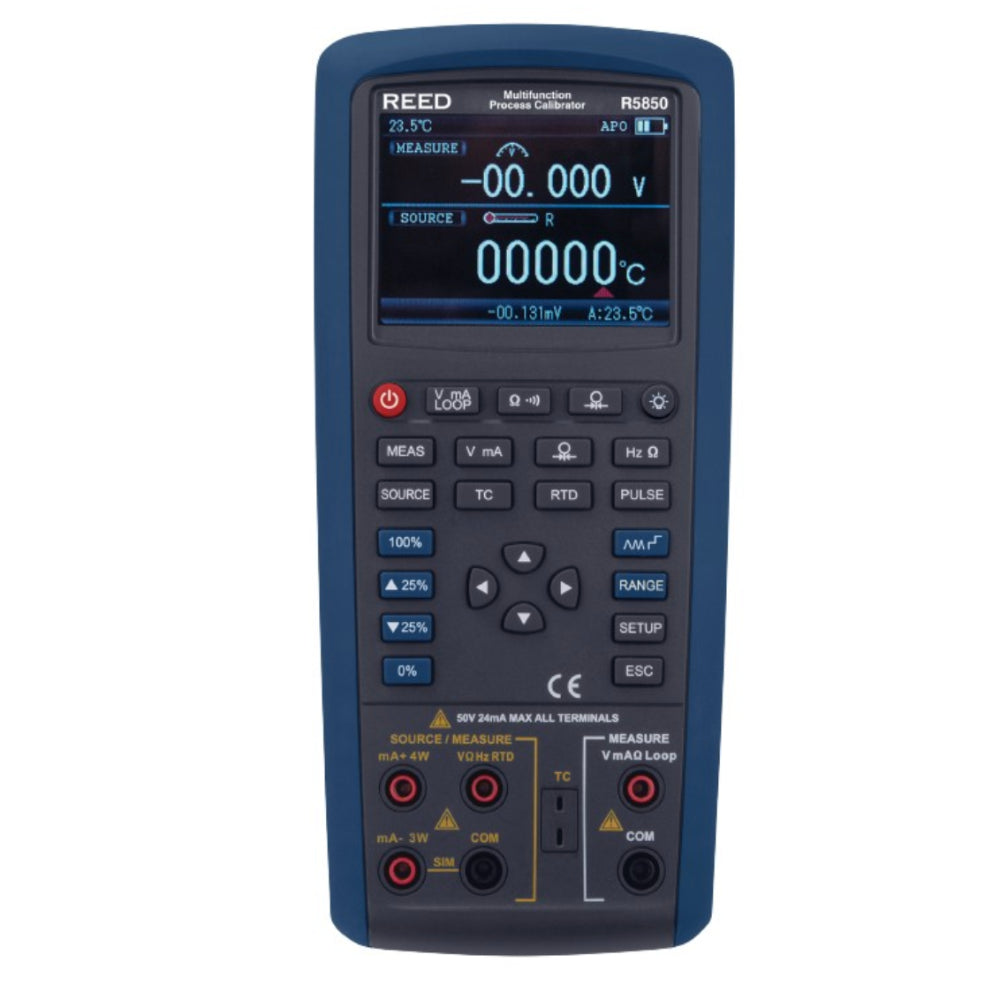

Reed Instruments R5850 multimeter with digital display on a white background

REED Instruments R5850 Multifunction Process Calibrator

by Reed Instruments
$2,995.00
  • ✓ Free Shipping US Wide
  • ✓ Need Help? Call Us On (888) 913-3691
  • ✓ Get The Best Price. Call Us
  • ✓ 60 Day Returns

Delivery Estimate

Notify me when back in stock

REED R5850

This multifunction process calibrator is designed to meet the highest industry standards, with its rugged and durable construction ensuring reliable performance in even the most demanding environments. The R5850 features a high-resolution LCD display, automatic step and ramp functions, a built-in 24V loop power supply, the ability to store and recall frequently used calibration setups, and offers an easy-to-use push-button interface.

Features

  • Rugged design stands up to field use
  • Measures/Sources volts, mA, RTDs, thermocouples, frequency, and ohms
  • 0.02% output and measurement accuracy
  • Easy-to-read measure/source screen lets you view input and output simultaneously
  • Perform fast linearity tests with auto step and auto ramp features
  • Powers transmitters during the test using a loop supply with simultaneous mA measurement
  • Measures and outputs 10 types of RTDs and 12 types of TC signals
  • Rechargeable Ni-MH battery
  • Adjustable brightness provides better visibility in poor light
  • Store frequently-used test setups for later use
  • Low battery indicator and auto shut-off

Ideal Applications for the REED R5850

  • Testing loop-powered isolators and two-wire transmitters
  • Verifying and calibrating processes involving mA instrumentation
Specifications

Measure Function
DC Voltage Range: 50, 500mV, 30V (upper display), 50V (lower display)
Resolution: 0.001, 0.01, 1mV, 0.001V
Accuracy:
50mV: ±(0.02% +10)
500mV: ±(0.02% +5)
30V (upper display): ±(0.02% +2)
50V (lower display): ±(0.02% +2)
DC Current Range: 20mA at 0 to 24mA
Resolution: 0.001mA
Accuracy: ±(0.02% +2)
Loop Current Range: 20mA (loop) at 0 to 24mA
Resolution: 0.001mA
Accuracy: ±(0.02% +2)
Resistance Range: 500, 5000Ω
Resolution: 0.01, 0.1Ω
Accuracy: ±(0.05% +10)
Frequency Range: 100Hz, 1, 10, 100kHz
Resolution: 0.01, 0.1, 1Hz
Accuracy: ±(0.01% +1)

Thermocouples
Type R Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 932°F (0 to 500°C): ±3.24°F (±1.8°C)
932 to 3212.6°F (500 to 1767°C): ±2.7°F (±1.5°C)
Type S Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 932°F (0 to 500°C): ±3.24°F (±1.8°C)
932 to 3212.6°F (500 to 1767°C): ±2.7°F (±1.5°C)
Type B Range: 1112 to 3308°F (600 to 1820°C)
Resolution: 1°F/°C
Accuracy:
1112 to 1472°F (600 to 800°C): ±3.96°F (±2.2°C)
1472 to 1832°F (800 to 1000°C): ±3.24°F (±1.8°C)
1832 to 3308°F (1000 to 1820°C): ±2.52°F (±1.4°C)
Type E Range: -58 to 1832°F (-50 to 1000°C)
Resolution: 0.1°F/°C
Accuracy:
-58 to 32°F (-50 to 0°C): ±1.62°F (±0.9°C)
32 to 1832°F (0 to 1000°C): ±2.7°F (±1.5°C)
Type K Range: -148 to 2501.6°F (-100 to 1372°C)
Resolution: 0.1°F/°C
Accuracy:
-148 to 32°F (-100 to 0°C): ±2.16°F (±1.2°C)
32 to 2501.6°F (0 to 1372°C): ±1.44°F (±0.8°C)
Type J Range: -76 to 2192°F (-60 to 1200°C)
Resolution: 0.1°F/°C
Accuracy:
-76 to 32°F (-60 to 0°C): ±1.8°F (±1°C)
32 to 2192°F (0 to 1200°C): ±1.26°F (±0.7°C)
Type T Range: -148 to 752°F (-100 to 400°C)
Resolution: 0.1°F/°C
Accuracy:
-148 to 32°F (-100 to 0°C): ±1.8°F (±1°C)
32 to 752°F (0 to 400°C): ±1.26°F (±0.7°C)
Type N Range: -328 to 2372°F (-200 to 1300°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±2.7°F (±1.5°C)
32 to 2372°F (0 to 1300°C): ±1.62°F (±0.9°C)
Type L Range: -328 to 1652°F (-200 to 900°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.53°F (±0.85°C)
32 to 1652°F (0 to 900°C): ±1.26°F (±0.7°C)
Type U Range: -328 to 752°F (-200 to 400°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.98°F (±1.1°C)
32 to 752°F (0 to 400°C): ±1.35°F (±0.75°C)
Type XK Range: -328 to 1472°F (-200 to 800°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±0.9°F (±0.5°C)
-148 to 1472°F (-100 to 800°C): ±1.08°F (±0.6°C)
Type BP Range: 32 to 4532°F (0 to 2500°C)
Resolution: 0.1°F/°C
Accuracy:
32 to 1472°F (0 to 800°C): ±2.16°F (±1.2°C)
1472 to 4532°F (800 to 2500°C): ±4.5°F (±2.5°C)

RTDs
Pt100 (2-wire/3-wire) Range: -328 to 1562°F (-200 to 850°C)
Resolution: 0.1°F/°C
Accuracy: ±0.72°F (±0.4°C)
Pt100 (4-wire) Range: -328 to 1562°F (-200 to 850°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt200 (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 482°F (-200 to 250°C): ±0.54°F (±0.3°C)
482 to 1166°F (250 to 630°C): ±2.88°F (±1.6°C)
Pt200 (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 482°F (-200 to 250°C): ±0.36°F (±0.2°C)
482 to 1166°F (250 to 630°C): ±1.44°F (±0.8°C)
Pt500 (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 932°F (-200 to 500°C): ±1.08°F (±0.6°C)
932 to 1166°F (500 to 630°C): ±1.62°F (±0.9°C)
Pt500 (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 932°F (-200 to 500°C): ±0.54°F (±0.3°C)
932 to 1166°F (500 to 630°C): ±0.72°F (±0.4°C)
Pt1000 (2-wire/3-wire) Range: -328 to 1202°F (-200 to 650°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt1000 (4-wire) Range: -328 to 1202°F (-200 to 650°C)
Resolution: 0.1°F/°C
Accuracy: ±0.27°F (±0.15°C)
Cu10 Range: -148 to 500°F (-100 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±3.24°F (±1.8°C)
Cu50 (2-wire/3-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±1.44°F (±0.8°C)
Cu50 (4-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Cu100 (2-wire/3-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.72°F (±0.4°C)
Cu100 (4-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.45°F (±0.25°C)
Pt100-392 (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Pt100-392 (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt100-JIS (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Pt100-JIS (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Ni120 (2-wire/3-wire) Range: -112 to 500°F (-80 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Ni120 (4-wire) Range: -112 to 500°F (-80 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±0.36°F (±0.2°C)

Source Function
DC Voltage Range: 100mV, 1, 10V
Resolution: 0.001, 0.01mV, 0.0001V
Accuracy: ±(0.02% +10)
DC Current Range:
20mA at 0 to 24mA
20mA (SIM) at 0 to 24mA

Resolution: 0.001mA
Accuracy: ±(0.02% +2)
Resistance Range: 400, 4000Ω, 40kΩ
Resolution: 0.01, 0.1, 1Ω
Accuracy:
±(0.02% +8)
±(0.05% +10)
±(0.1% +40)
Frequency Range: 200, 2000Hz, 20, 100kHz
Resolution: 0.01, 0.1, 1, 10Hz
Accuracy: ±(0.01% +1) (±3 dgt.), 100kHz: ±5 dgt.
Pulse Range: 100Hz, 1, 10kHz
Resolution: 1 cyc
Accuracy: ±2 dgt.
Switch Quantity Range: 100Hz, 1, 10, 100kHz
Resolution: 0.01, 0.1, 1, 10Hz
Accuracy: ±2 dgt.

Thermocouples
Type R Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 212°F (0 to 100°C): ±2.7°F (±1.5°C)
212 to 3212.6°F (100 to 1767°C): ±2.16°F (±1.2°C)
Type S Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 212°F (0 to 100°C): ±2.7°F (±1.5°C)
212 to 3212.6°F (100 to 1767°C): ±2.16°F (±1.2°C)
Type B Range: 1112 to 3308°F (600 to 1820°C)
Resolution: 1°F/°C
Accuracy:
1112 to 1472°F (600 to 800°C): ±2.7°F (±1.5°C)
1472 to 3308°F (800 to 1820°C): ±1.98°F (±1.1°C)
Type E Range: -328 to 1832°F (-200 to 1000°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)
-148 to 1112°F (-100 to 600°C): ±0.9°F (±0.5°C)
1112 to 1832°F (600 to 1000°C): ±0.72°F (±0.4°C)
Type K Range: -328 to 2501.6°F (-200 to 1372°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)
-148 to 752°F (-100 to 400°C): ±0.9°F (±0.5°C)
752 to 2192°F (400 to 1200°C): ±1.26°F (±0.7°C)
2192 to 2501.6°F (1200 to 1372°C): ±1.62°F (±0.9°C)
Type J Range: -328 to 2192°F (-200 to 1200°C)
Resolution: 0.1°F/°C
Accuracy:
-200 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)
-148 to 1472°F (-100 to 800°C): ±0.9°F (±0.5°C)
1472 to 2192°F (800 to 1200°C): ±1.26°F (±0.7°C)
Type T Range: -418 to 752°F (-250 to 400°C)
Resolution: 0.1°F/°C
Accuracy: ±1.08°F (±0.6°C)
Type N Range: -328 to 2372°F (-200 to 1300°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±1.8°F (±1°C)
-148 to 1652°F (-100 to 900°C): ±1.26°F (±0.7°C)
1652 to 2372°F (900 to 1300°C): ±1.44°F (±0.8°C)
Type L Range: -328 to 1652°F (-200 to 900°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.53°F (±0.85°C)
32 to 1652°F (0 to 900°C): ±1.26°F (±0.7°C)
Type U Range: -328 to 752°F (-200 to 400°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.98°F (±1.1°C)
32 to 752°F (0 to 400°C): ±1.35°F (±0.75°C)
Type XK Range: -328 to 1472°F (-200 to 800°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±0.9°F (±0.5°C)
-148 to 1472°F (-100 to 800°C): ±1.08°F (±0.6°C)
Type BP Range: 32 to 4532°F (0 to 2500°C)
Resolution: 0.1°F/°C
Accuracy:
32 to 1472°F (0 to 800°C): ±2.16°F (±1.2°C)
1472 to 4532°F (800 to 2500°C): ±4.5°F (±2.5°C)

RTDs
Pt100-385 Range: -328 to 1472°F (-200 to 800°C)
Resolution: 0.1°F/°C
Accuracy: ±0.6°F (±0.33°C)
Pt100-392 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt200-385 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 482°F (-200 to 250°C): ±0.36°F (±0.2°C)
482 to 1166°F (250 to 630°C): ±1.44°F (±0.8°C)
Pt100-JIS Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt500-385 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 932°F (-200 to 500°C): ±0.54°F (±0.3°C)
932 to 1166°F (500 to 630°C): ±0.72°F (±0.4°C)
Pt1000-385 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.36°F (±0.2°C)
Cu10 Range: -148 to 500°F (-100 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±3.24°F (±1.8°C)
Cu50 Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Cu100 Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.45°F (±0.25°C)
Ni120 Range: -112 to 500°F (-80 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±0.36°F (±0.2°C)

Function Specifications
Ramp Functions Source functions: Voltage, Current, Resistance, Frequency, Temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Loop Power Function Voltage: 24V
Accuracy: 10%
Maximum current: 22mA, short circuit protected
Step Functions Source functions: Voltage, Current, Resistance, Frequency, Temperature
Steps: 25% of range, 100% of range

General Specifications
Display 20,000 count TFT color LCD display
Kick Stand Yes
Power Supply 1.2V x 6 AA rechargeable batteries
Auto Shut-off Yes
Low Battery Indicator Yes
Replaceable Test Leads Yes
Product Certifications CE, RoHS
Operating Temperature 14 to 131°F (-10 to 55°C)
Operating Humidity Range ≤95%
Storage Temperature -4 to 158°F (-20 to 70°C)
Max. Operating Altitude 6561' (2000m)
Dimensions 7.7 x 3.7 x 2.3" (195 x 95 x 58mm)
Weight 22.92oz (650g)

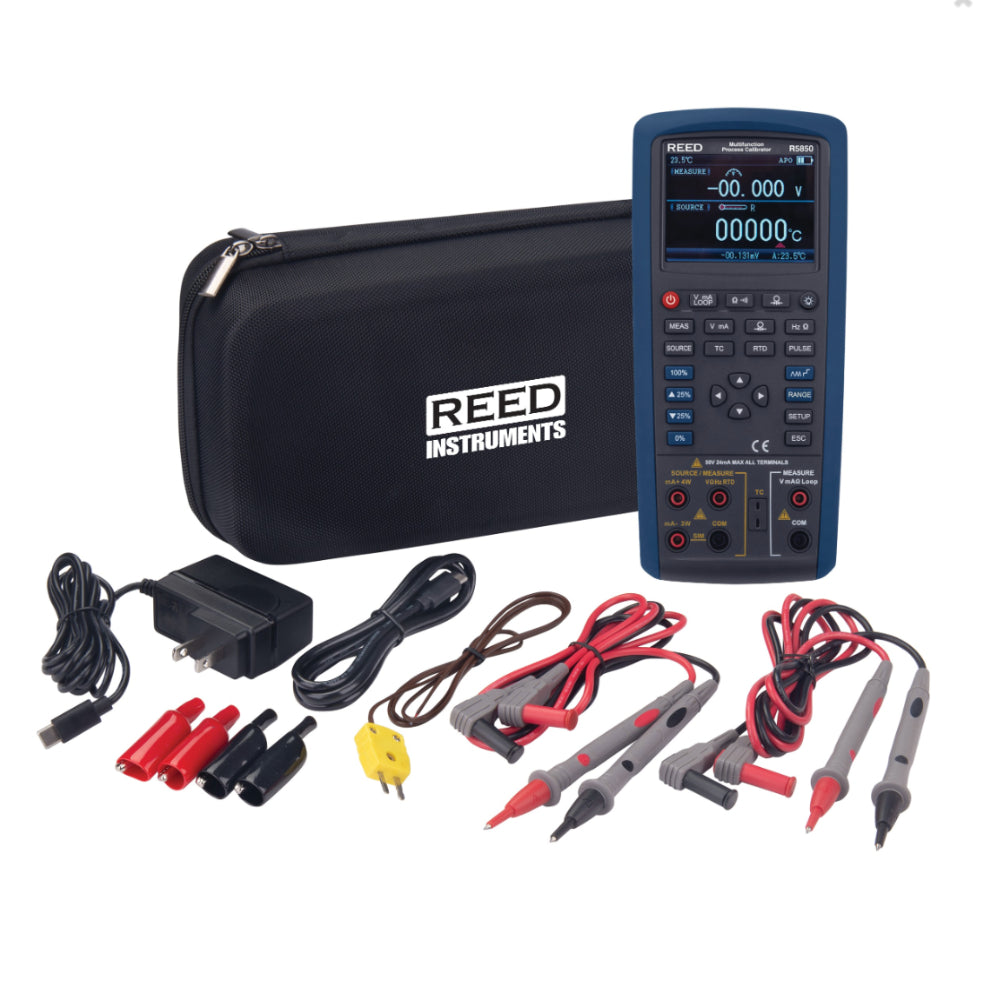

Included
  • Multifunction Process Calibrator
  • Test Leads
  • Test Clips
  • Type K Thermocouple Wire Probe
  • USB Cable
  • Power Adapter
  • Carrying Case
Resources

Datasheet for the REED R5850 Multifunction Process Calibrator

Manual for the REED R5850 Multifunction Process Calibrator

Description

REED R5850

This multifunction process calibrator is designed to meet the highest industry standards, with its rugged and durable construction ensuring reliable performance in even the most demanding environments. The R5850 features a high-resolution LCD display, automatic step and ramp functions, a built-in 24V loop power supply, the ability to store and recall frequently used calibration setups, and offers an easy-to-use push-button interface.

Features

  • Rugged design stands up to field use
  • Measures/Sources volts, mA, RTDs, thermocouples, frequency, and ohms
  • 0.02% output and measurement accuracy
  • Easy-to-read measure/source screen lets you view input and output simultaneously
  • Perform fast linearity tests with auto step and auto ramp features
  • Powers transmitters during the test using a loop supply with simultaneous mA measurement
  • Measures and outputs 10 types of RTDs and 12 types of TC signals
  • Rechargeable Ni-MH battery
  • Adjustable brightness provides better visibility in poor light
  • Store frequently-used test setups for later use
  • Low battery indicator and auto shut-off

Ideal Applications for the REED R5850

  • Testing loop-powered isolators and two-wire transmitters
  • Verifying and calibrating processes involving mA instrumentation
Specifications

Measure Function
DC Voltage Range: 50, 500mV, 30V (upper display), 50V (lower display)
Resolution: 0.001, 0.01, 1mV, 0.001V
Accuracy:
50mV: ±(0.02% +10)
500mV: ±(0.02% +5)
30V (upper display): ±(0.02% +2)
50V (lower display): ±(0.02% +2)
DC Current Range: 20mA at 0 to 24mA
Resolution: 0.001mA
Accuracy: ±(0.02% +2)
Loop Current Range: 20mA (loop) at 0 to 24mA
Resolution: 0.001mA
Accuracy: ±(0.02% +2)
Resistance Range: 500, 5000Ω
Resolution: 0.01, 0.1Ω
Accuracy: ±(0.05% +10)
Frequency Range: 100Hz, 1, 10, 100kHz
Resolution: 0.01, 0.1, 1Hz
Accuracy: ±(0.01% +1)

Thermocouples
Type R Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 932°F (0 to 500°C): ±3.24°F (±1.8°C)
932 to 3212.6°F (500 to 1767°C): ±2.7°F (±1.5°C)
Type S Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 932°F (0 to 500°C): ±3.24°F (±1.8°C)
932 to 3212.6°F (500 to 1767°C): ±2.7°F (±1.5°C)
Type B Range: 1112 to 3308°F (600 to 1820°C)
Resolution: 1°F/°C
Accuracy:
1112 to 1472°F (600 to 800°C): ±3.96°F (±2.2°C)
1472 to 1832°F (800 to 1000°C): ±3.24°F (±1.8°C)
1832 to 3308°F (1000 to 1820°C): ±2.52°F (±1.4°C)
Type E Range: -58 to 1832°F (-50 to 1000°C)
Resolution: 0.1°F/°C
Accuracy:
-58 to 32°F (-50 to 0°C): ±1.62°F (±0.9°C)
32 to 1832°F (0 to 1000°C): ±2.7°F (±1.5°C)
Type K Range: -148 to 2501.6°F (-100 to 1372°C)
Resolution: 0.1°F/°C
Accuracy:
-148 to 32°F (-100 to 0°C): ±2.16°F (±1.2°C)
32 to 2501.6°F (0 to 1372°C): ±1.44°F (±0.8°C)
Type J Range: -76 to 2192°F (-60 to 1200°C)
Resolution: 0.1°F/°C
Accuracy:
-76 to 32°F (-60 to 0°C): ±1.8°F (±1°C)
32 to 2192°F (0 to 1200°C): ±1.26°F (±0.7°C)
Type T Range: -148 to 752°F (-100 to 400°C)
Resolution: 0.1°F/°C
Accuracy:
-148 to 32°F (-100 to 0°C): ±1.8°F (±1°C)
32 to 752°F (0 to 400°C): ±1.26°F (±0.7°C)
Type N Range: -328 to 2372°F (-200 to 1300°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±2.7°F (±1.5°C)
32 to 2372°F (0 to 1300°C): ±1.62°F (±0.9°C)
Type L Range: -328 to 1652°F (-200 to 900°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.53°F (±0.85°C)
32 to 1652°F (0 to 900°C): ±1.26°F (±0.7°C)
Type U Range: -328 to 752°F (-200 to 400°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.98°F (±1.1°C)
32 to 752°F (0 to 400°C): ±1.35°F (±0.75°C)
Type XK Range: -328 to 1472°F (-200 to 800°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±0.9°F (±0.5°C)
-148 to 1472°F (-100 to 800°C): ±1.08°F (±0.6°C)
Type BP Range: 32 to 4532°F (0 to 2500°C)
Resolution: 0.1°F/°C
Accuracy:
32 to 1472°F (0 to 800°C): ±2.16°F (±1.2°C)
1472 to 4532°F (800 to 2500°C): ±4.5°F (±2.5°C)

RTDs
Pt100 (2-wire/3-wire) Range: -328 to 1562°F (-200 to 850°C)
Resolution: 0.1°F/°C
Accuracy: ±0.72°F (±0.4°C)
Pt100 (4-wire) Range: -328 to 1562°F (-200 to 850°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt200 (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 482°F (-200 to 250°C): ±0.54°F (±0.3°C)
482 to 1166°F (250 to 630°C): ±2.88°F (±1.6°C)
Pt200 (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 482°F (-200 to 250°C): ±0.36°F (±0.2°C)
482 to 1166°F (250 to 630°C): ±1.44°F (±0.8°C)
Pt500 (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 932°F (-200 to 500°C): ±1.08°F (±0.6°C)
932 to 1166°F (500 to 630°C): ±1.62°F (±0.9°C)
Pt500 (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 932°F (-200 to 500°C): ±0.54°F (±0.3°C)
932 to 1166°F (500 to 630°C): ±0.72°F (±0.4°C)
Pt1000 (2-wire/3-wire) Range: -328 to 1202°F (-200 to 650°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt1000 (4-wire) Range: -328 to 1202°F (-200 to 650°C)
Resolution: 0.1°F/°C
Accuracy: ±0.27°F (±0.15°C)
Cu10 Range: -148 to 500°F (-100 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±3.24°F (±1.8°C)
Cu50 (2-wire/3-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±1.44°F (±0.8°C)
Cu50 (4-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Cu100 (2-wire/3-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.72°F (±0.4°C)
Cu100 (4-wire) Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.45°F (±0.25°C)
Pt100-392 (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Pt100-392 (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt100-JIS (2-wire/3-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Pt100-JIS (4-wire) Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Ni120 (2-wire/3-wire) Range: -112 to 500°F (-80 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Ni120 (4-wire) Range: -112 to 500°F (-80 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±0.36°F (±0.2°C)

Source Function
DC Voltage Range: 100mV, 1, 10V
Resolution: 0.001, 0.01mV, 0.0001V
Accuracy: ±(0.02% +10)
DC Current Range:
20mA at 0 to 24mA
20mA (SIM) at 0 to 24mA

Resolution: 0.001mA
Accuracy: ±(0.02% +2)
Resistance Range: 400, 4000Ω, 40kΩ
Resolution: 0.01, 0.1, 1Ω
Accuracy:
±(0.02% +8)
±(0.05% +10)
±(0.1% +40)
Frequency Range: 200, 2000Hz, 20, 100kHz
Resolution: 0.01, 0.1, 1, 10Hz
Accuracy: ±(0.01% +1) (±3 dgt.), 100kHz: ±5 dgt.
Pulse Range: 100Hz, 1, 10kHz
Resolution: 1 cyc
Accuracy: ±2 dgt.
Switch Quantity Range: 100Hz, 1, 10, 100kHz
Resolution: 0.01, 0.1, 1, 10Hz
Accuracy: ±2 dgt.

Thermocouples
Type R Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 212°F (0 to 100°C): ±2.7°F (±1.5°C)
212 to 3212.6°F (100 to 1767°C): ±2.16°F (±1.2°C)
Type S Range: 32 to 3212.6°F (0 to 1767°C)
Resolution: 1°F/°C
Accuracy:
32 to 212°F (0 to 100°C): ±2.7°F (±1.5°C)
212 to 3212.6°F (100 to 1767°C): ±2.16°F (±1.2°C)
Type B Range: 1112 to 3308°F (600 to 1820°C)
Resolution: 1°F/°C
Accuracy:
1112 to 1472°F (600 to 800°C): ±2.7°F (±1.5°C)
1472 to 3308°F (800 to 1820°C): ±1.98°F (±1.1°C)
Type E Range: -328 to 1832°F (-200 to 1000°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)
-148 to 1112°F (-100 to 600°C): ±0.9°F (±0.5°C)
1112 to 1832°F (600 to 1000°C): ±0.72°F (±0.4°C)
Type K Range: -328 to 2501.6°F (-200 to 1372°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)
-148 to 752°F (-100 to 400°C): ±0.9°F (±0.5°C)
752 to 2192°F (400 to 1200°C): ±1.26°F (±0.7°C)
2192 to 2501.6°F (1200 to 1372°C): ±1.62°F (±0.9°C)
Type J Range: -328 to 2192°F (-200 to 1200°C)
Resolution: 0.1°F/°C
Accuracy:
-200 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)
-148 to 1472°F (-100 to 800°C): ±0.9°F (±0.5°C)
1472 to 2192°F (800 to 1200°C): ±1.26°F (±0.7°C)
Type T Range: -418 to 752°F (-250 to 400°C)
Resolution: 0.1°F/°C
Accuracy: ±1.08°F (±0.6°C)
Type N Range: -328 to 2372°F (-200 to 1300°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±1.8°F (±1°C)
-148 to 1652°F (-100 to 900°C): ±1.26°F (±0.7°C)
1652 to 2372°F (900 to 1300°C): ±1.44°F (±0.8°C)
Type L Range: -328 to 1652°F (-200 to 900°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.53°F (±0.85°C)
32 to 1652°F (0 to 900°C): ±1.26°F (±0.7°C)
Type U Range: -328 to 752°F (-200 to 400°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 32°F (-200 to 0°C): ±1.98°F (±1.1°C)
32 to 752°F (0 to 400°C): ±1.35°F (±0.75°C)
Type XK Range: -328 to 1472°F (-200 to 800°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to -148°F (-200 to -100°C): ±0.9°F (±0.5°C)
-148 to 1472°F (-100 to 800°C): ±1.08°F (±0.6°C)
Type BP Range: 32 to 4532°F (0 to 2500°C)
Resolution: 0.1°F/°C
Accuracy:
32 to 1472°F (0 to 800°C): ±2.16°F (±1.2°C)
1472 to 4532°F (800 to 2500°C): ±4.5°F (±2.5°C)

RTDs
Pt100-385 Range: -328 to 1472°F (-200 to 800°C)
Resolution: 0.1°F/°C
Accuracy: ±0.6°F (±0.33°C)
Pt100-392 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt200-385 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 482°F (-200 to 250°C): ±0.36°F (±0.2°C)
482 to 1166°F (250 to 630°C): ±1.44°F (±0.8°C)
Pt100-JIS Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.54°F (±0.3°C)
Pt500-385 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy:
-328 to 932°F (-200 to 500°C): ±0.54°F (±0.3°C)
932 to 1166°F (500 to 630°C): ±0.72°F (±0.4°C)
Pt1000-385 Range: -328 to 1166°F (-200 to 630°C)
Resolution: 0.1°F/°C
Accuracy: ±0.36°F (±0.2°C)
Cu10 Range: -148 to 500°F (-100 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±3.24°F (±1.8°C)
Cu50 Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.9°F (±0.5°C)
Cu100 Range: -58 to 302°F (-50 to 150°C)
Resolution: 0.1°F/°C
Accuracy: ±0.45°F (±0.25°C)
Ni120 Range: -112 to 500°F (-80 to 260°C)
Resolution: 0.1°F/°C
Accuracy: ±0.36°F (±0.2°C)

Function Specifications
Ramp Functions Source functions: Voltage, Current, Resistance, Frequency, Temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Loop Power Function Voltage: 24V
Accuracy: 10%
Maximum current: 22mA, short circuit protected
Step Functions Source functions: Voltage, Current, Resistance, Frequency, Temperature
Steps: 25% of range, 100% of range

General Specifications
Display 20,000 count TFT color LCD display
Kick Stand Yes
Power Supply 1.2V x 6 AA rechargeable batteries
Auto Shut-off Yes
Low Battery Indicator Yes
Replaceable Test Leads Yes
Product Certifications CE, RoHS
Operating Temperature 14 to 131°F (-10 to 55°C)
Operating Humidity Range ≤95%
Storage Temperature -4 to 158°F (-20 to 70°C)
Max. Operating Altitude 6561' (2000m)
Dimensions 7.7 x 3.7 x 2.3" (195 x 95 x 58mm)
Weight 22.92oz (650g)



Included
  • Multifunction Process Calibrator
  • Test Leads
  • Test Clips
  • Type K Thermocouple Wire Probe
  • USB Cable
  • Power Adapter
  • Carrying Case
Resources

Datasheet for the REED R5850 Multifunction Process Calibrator

Manual for the REED R5850 Multifunction Process Calibrator

Shipping

Shipping is FREE on all orders to customers within the United States.

We don't want to mess around with fine print and extra charges; we
like things to be simple and easy.

Want to know about our Returns Policy? Read more here.

Why Buy From Us

We get it. You've got a lot of choice when it comes to online retailers. Here's why we think you should shop with us at Westerly Apollo.

  • Free Shipping USA wide. No extra charges. Ever.
  • Price Match Guarantee. Best prices online guaranteed.
  • 30 Day Easy Returns. Not happy with your product, we'll take it back, no questions asked.
  • Great Service. We pride ourselves on the best service, anywhere.
  • Your Satisfaction Guaranteed. We handpick our products for quality, we know you'll love them. But is there is ever something wrong, we'll fix it.

Price Match Guarantee

We always aim to have the best prices available on our store. This is our guarantee to you!

If you (somehow) find another online store with a lower price than us, please let us know. Simply email us at info@westerlyapollo.com with a link to the same product on a competitor's website.

Once we have a chance to verify the pricing, we will match or beat the price you found. No questions asked!

Please note that the price must be the total price, including any shipping costs and taxes that may be charged by the comparison site.

For any further questions, view our Contact Us page.
